Embeddable Widget

The PDF Redaction widget lets you embed the upload → detect PII → redact → download flow directly on your own website, without sending files through your own backend. It runs inside a sandboxed iframe hosted on pdf-redaction.com and is authorized per-domain using one of your API keys.

1. Create a widget-enabled API key

1. Go to https://pdf-redaction.com/apikeys/ and create (or reuse) an API key.
2. Click the widget icon next to the key to open Embeddable Widget Settings.
3. Add the domain(s) that are allowed to embed the widget with this key (e.g. example.com). Leaving this empty allows any domain to use the key — not recommended for production.
4. Choose a default mode:

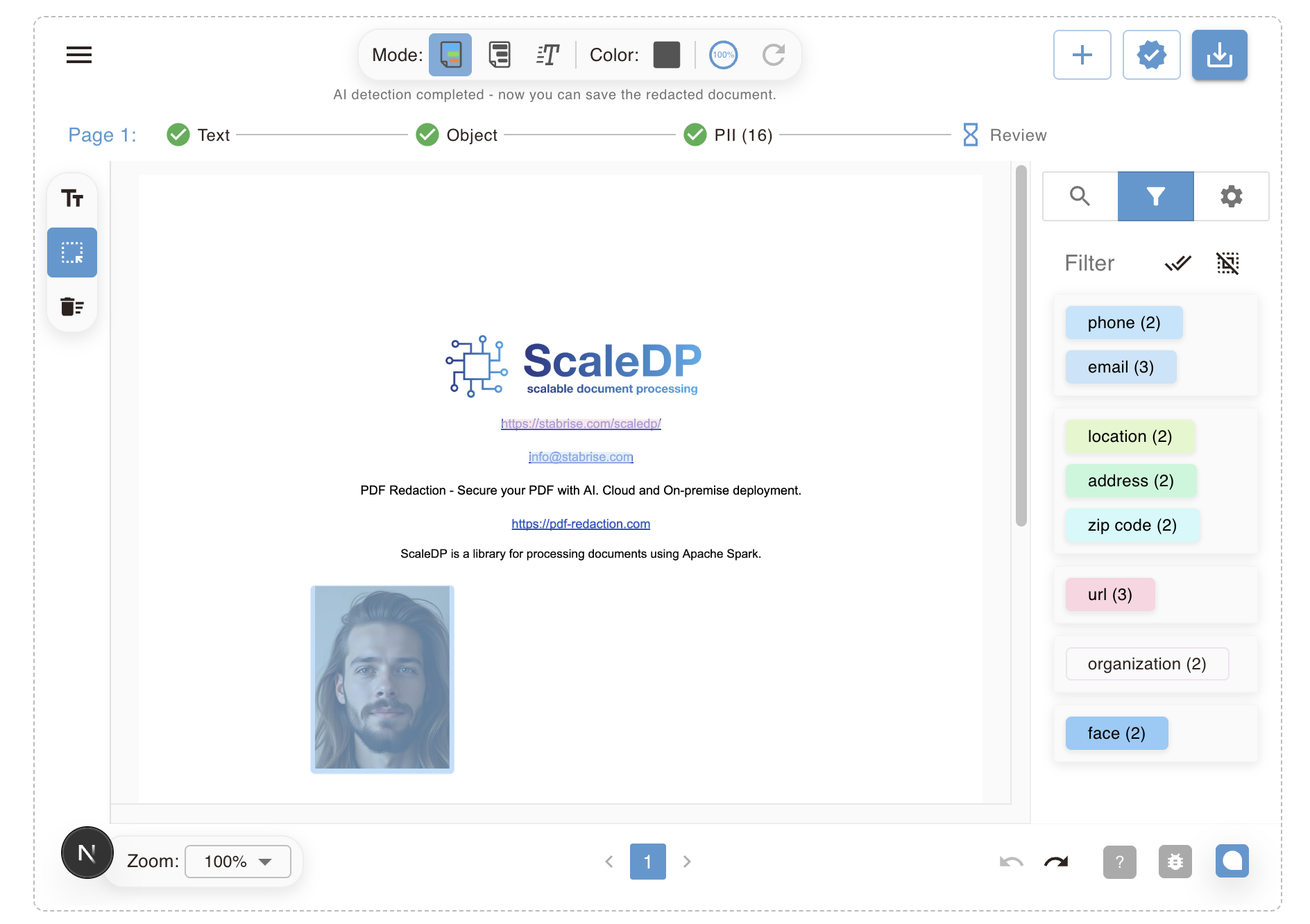

   • Full editor — the same upload/review/redact/download experience as pdf-redaction.com.
   • Auto redact — a one-click flow: drop a file, it's detected and redacted automatically, and the download starts.
5. Copy the generated snippet for your integration (below).

2. Embed via script tag

Add this to any page on an allowed domain:

<script src="https://pdf-redaction.com/widget.js"></script>
<div id="pdf-redaction-widget"></div>
<script>
  PdfRedactionWidget.init({
    key: 'YOUR_API_KEY',
    container: '#pdf-redaction-widget',
    mode: 'auto', // or 'full'; omit to use the key's default mode
    locale: 'en',
    onRedactionComplete: function (fileName) {
      console.log('Redaction complete:', fileName)
    },
    onError: function (message) {
      console.error('Widget error:', message)
    },
  })
</script>

The widget renders as a responsive iframe that auto-resizes to fit its content.

3. Embed via React (development)

For React apps, install @stabrise/redaction-widget-react and use the RedactionWidget component — a thin wrapper around the same iframe embed used by the script loader:

import { RedactionWidget } from '@stabrise/redaction-widget-react'

function MyPage() {
  return (
    <RedactionWidget
      apiKey="YOUR_API_KEY"
      mode="auto"
      onRedactionComplete={(fileName) => console.log('done', fileName)}
      onError={(message) => console.error(message)}
    />
  )
}

How authorization works

The widget reuses your existing API key rather than a separate credential. Because the key is used client-side (visible in your page source), authorization is enforced by domain, not secrecy — similar to a Google Maps or Stripe publishable key:

• When the widget iframe loads, it sends your key and the embedding page's origin to pdf-redaction.com for validation.
• If you've set allowed domains on the key, the widget only renders when the embedding origin matches one of them.
• Leaving allowed domains empty allows the key to be used from any site — only do this for testing.

Modes

postMessage events

Both the script loader and the React component communicate with the embedded page over postMessage. If you're building a custom integration directly against the iframe, the message type values are:

• pdf-redaction:widget:ready — iframe → parent, sent once mounted.
• pdf-redaction:widget:init — parent → iframe, sent in response to ready.
• pdf-redaction:widget:resize — iframe → parent, { height } in pixels.
• pdf-redaction:widget:redaction-complete — iframe → parent, { fileName }.
• pdf-redaction:widget:error — iframe → parent, { message }.
